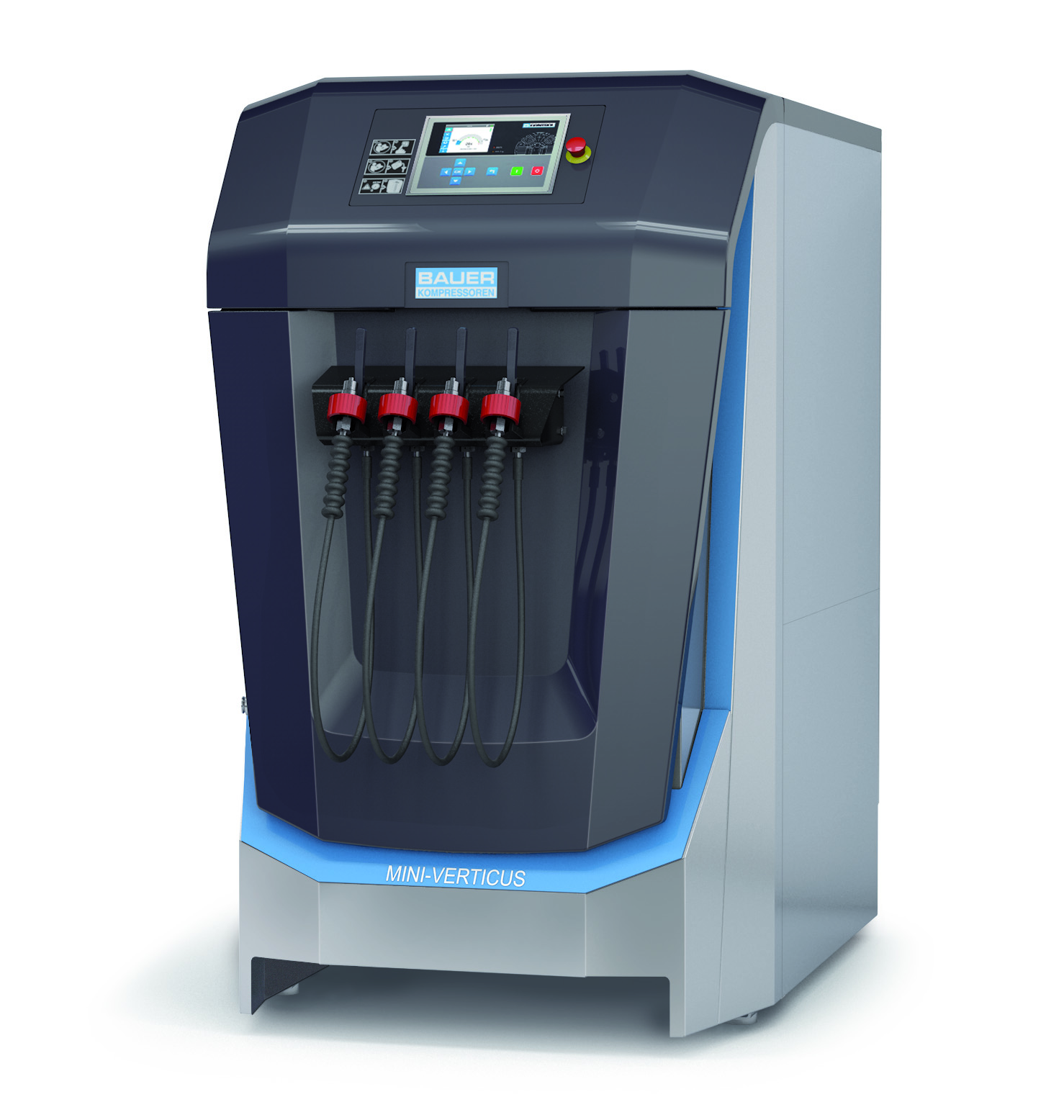

BAUER MINI VERTICUS 200/420
Charging rate - 200 lit/min
Operating pressure - 420 bar
Purification system - P41/420
Motor - 5,5 kW, 400V, 50Hz
Weight - 330 kg
Dimensions - 119.5 x 79 x 137.2 cm
Stationary model of open type
B-control Micro
Oil pressure, shutdown at maximum pressure, air temperature, hysteresis,
Condensate tank level (14 liter tank included)
No filling hose
Additional options:
- Super silent
- safety valve with TUV setting
- external suction "over roof" (only in combination with super silent, it can cause a decrease in filling speed)
- B-control II
- B-app ready (B-Link) (only possible with B-control Micro)
- manometers for intermediate pressures
- Oil level measurement
- Condensate tank 60 liters (external)
- separator after the 1st degree
- B-cool
- filter system P61
- B-Securus work supervision
- particle filter (ISO 8573:2010 class 2)
- extended housing base
- 4 hoses for filling at 200 or 300 bar
- switch 200/300 bar with 2 hoses at 200 and 2 hoses at 300 bar)
BAUER MINI VERTICUS 250/420
Charging rate - 250 lit/min
Operating pressure - 420 bar
Purification system - P41/420
Motor - 5.5 kW, 400V, 50Hz
Weight - 339 kg
Dimensions - 119.5 x 79 x 137.2 cm
Stationary model of open type
B-control Micro
Oil pressure, shutdown at maximum pressure, air temperature, hysteresis,
Condensate tank level (14 liter tank included)
No filling hose
Additional options:
- Super silent
- safety valve with TUV setting
- external suction "over roof" (only in combination with super silent, it can cause a decrease in filling speed)
- B-control II
- B-app ready (B-Link) (only possible with B-control Micro)
- manometers for intermediate pressures
- Oil level measurement
- Condensate tank 60 liters (external)
- separator after the 1st degree
- B-cool
- filter system P61
- B-Securus work supervision
- particle filter (ISO 8573:2010 class 2)
- extended housing base
- 4 hoses for filling at 200 or 300 bar
- switch 200/300 bar with 2 hoses at 200 and 2 hoses at 300 bar)
BAUER MINI VERTICUS 260/420
Charging rate - 260 lit/min
Operating pressure - 420 bar
Purification system - P41/420
Motor - 3-phase, 5.5 kW, 400V, 50Hz
Weight - 349 kg
Dimensions - 119.5 x 79 x 137.2 cm
Stationary model of open type
B-control Micro
Oil pressure, shutdown at maximum pressure, air temperature, hysteresis,
Condensate tank level (14 liter tank included)
No filling hose
Additional options:
- Super silent
- safety valve with TUV setting
- external suction "over roof" (only in combination with super silent, it can cause a decrease in filling speed)
- B-control II
- B-app ready (B-Link) (only possible with B-control Micro)
- manometers for intermediate pressures
- Oil level measurement
- Condensate tank 60 liters (external)
- separator after the 1st degree
- B-cool
- filter system P61
- B-Securus work supervision
- particle filter (ISO 8573:2010 class 2)
- extended housing base
- 4 hoses for filling at 200 or 300 bar
- switch 200/300 bar with 2 hoses at 200 and 2 hoses at 300 bar)
BAUER MINI VERTICUS 320/420
Charging rate - 320 lit/min
Operating pressure - 420 bar
Purification system - P41/420
Motor - 3-phase, power 7.5 kW, 400V, 50Hz
Weight - 356 kg
Dimensions - 119.5 x 79 x 137.2 cm
Stationary model of open type
B-control Micro
Oil pressure, shutdown at maximum pressure, air temperature, hysteresis,
Condensate tank level (14 liter tank included)
No filling hose
Additional options:
- Super silent
- safety valve with TUV setting
- external suction "over roof" (only in combination with super silent, it can cause a decrease in filling speed)
- B-control II
- B-app ready (B-Link) (only possible with B-control Micro)
- manometers for intermediate pressures
- Oil level measurement
- Condensate tank 60 liters (external)
- separator after the 1st degree
- B-cool
- filter system P61
- B-Securus work supervision
- particle filter (ISO 8573:2010 class 2)
- extended housing base
- 4 hoses for filling at 200 or 300 bar
- switch 200/300 bar with 2 hoses at 200 and 2 hoses at 300 bar)
